The basic objective of the electrical bonding of an all wood aircraft
it to interconnect all electricaaly isolated metal parts so as to form
a continuous, low resistance, electrical circuit to the primary structure,

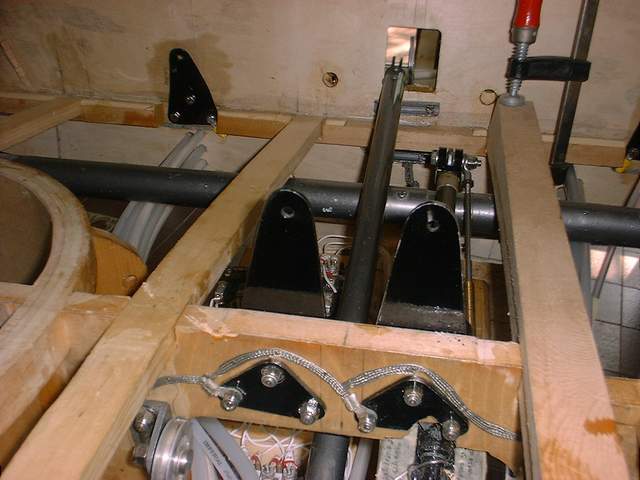

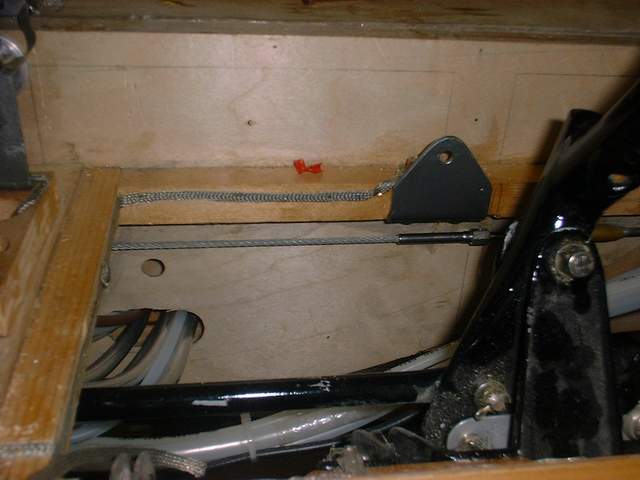

that is the engine mount.So we used a flat spooled wire to connect all
the hinges and metal parts of the airplane.

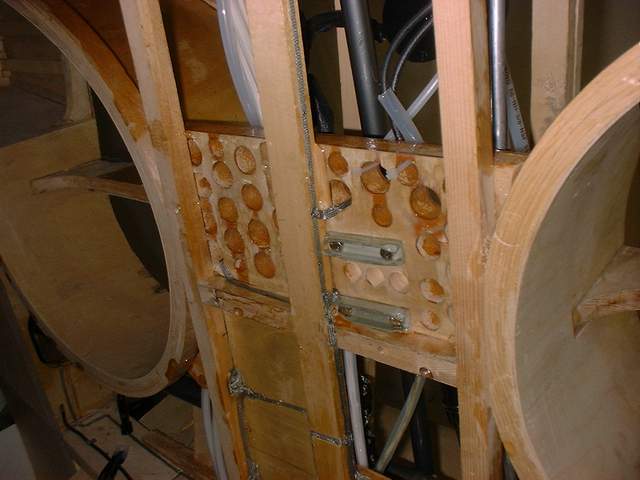

In this picture the bonding runs on the hinges that we made for the
lateral seat belts.The original Falco has only shoulder harnesses and
what can be called the fifht point.We decided to have also the seat
belts, and we made those hinges then.
|
