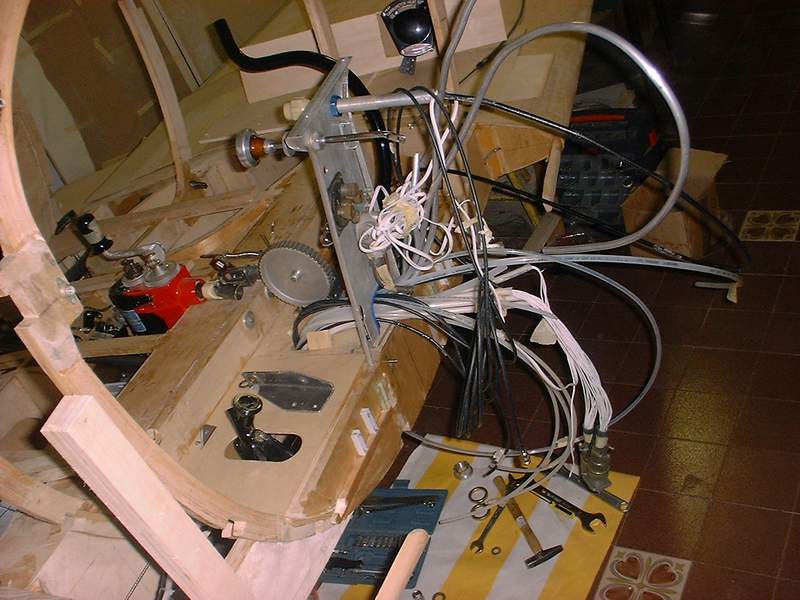

The wires are passed in some rilsan tubes, so that we can easily add or remove them.As you can see the pass just below the center consolle and the wires are soldered to a couple of Bendix connectors that go directly to the instrument panel.The black wires are the antennas and the aluminium tubes are used for the fuel system as well as for the smoke system.There are also the pitot lines and ELT controls cables.

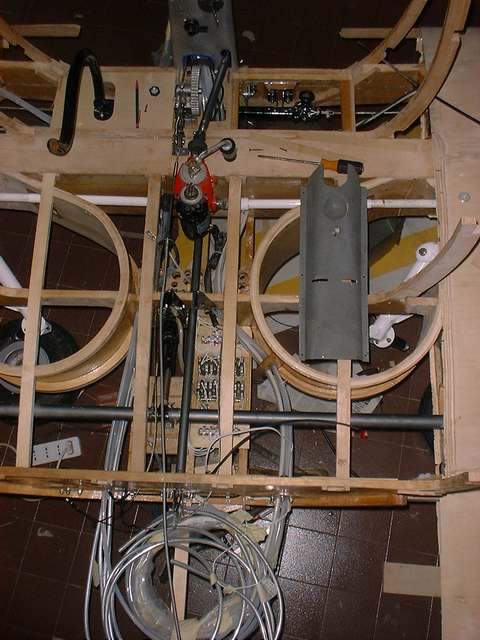

Then the tubes pass below the cabin floor and throught an hole in the spar.Other lines comes fron the wing and it's possible to see the lower part of the control stick with the lever for the elevator.At this stage we have still to protect the aluminum tubes so that they don't touch with each other.

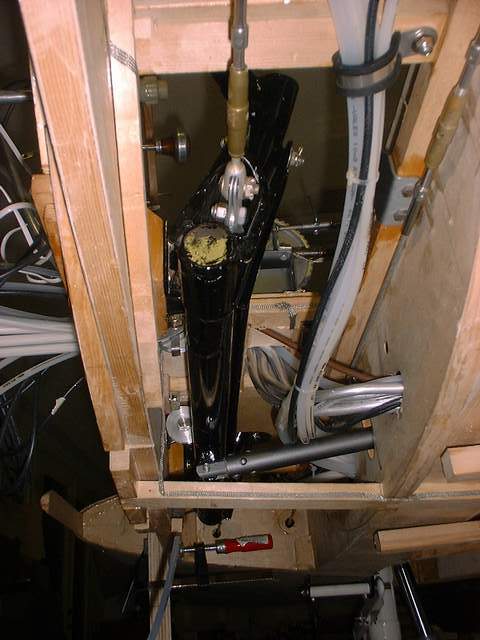

We divided the electrical tubes from the fuel lines.While the fuel lines pass in the left side of the fuselage,the electical ones go on the right.We plan to have a bar just behind this last frame,that is frame number 6.

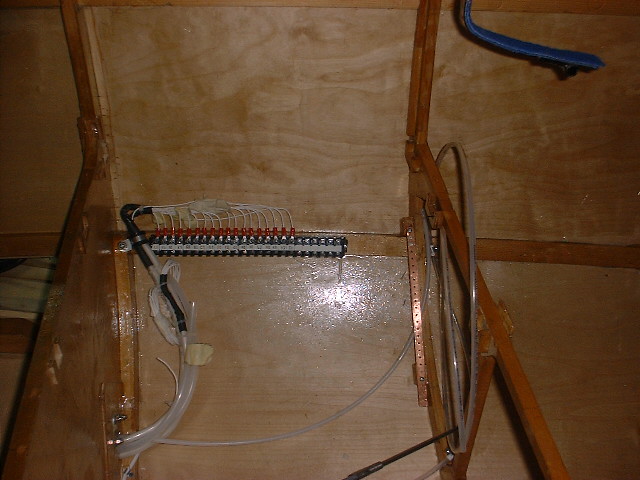

The electrical connections and bar behind frame n°6.
