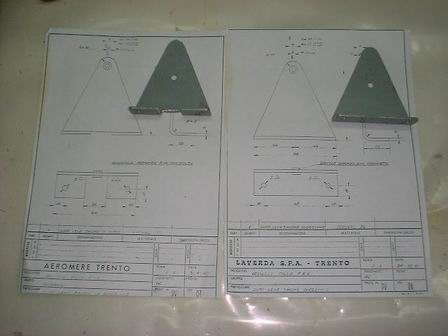

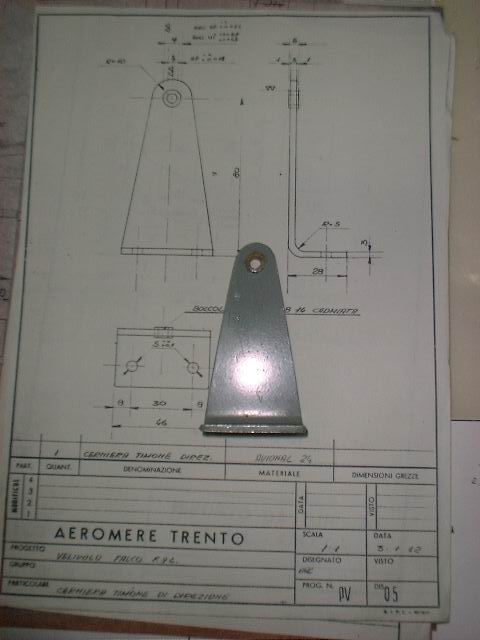

This is an hinge that is installed in the tail for the rudder.The drawing is original and it belongs to Series IV falco made by Aereomere.Also the hinge is original.We just painted it

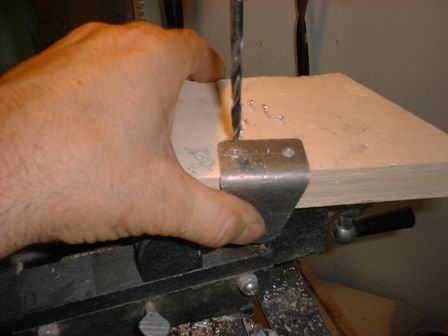

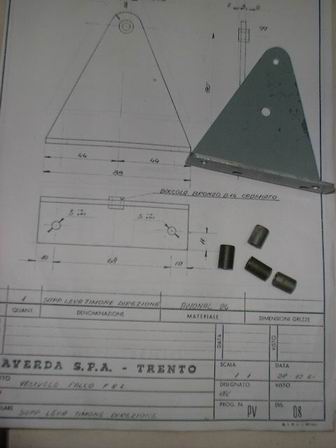

Working on a new hinge for the tail.

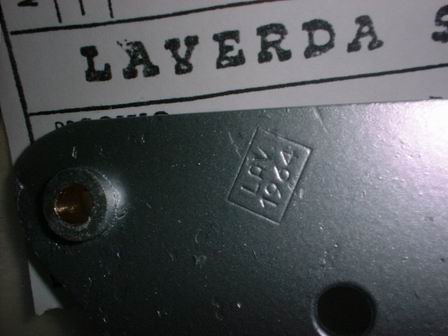

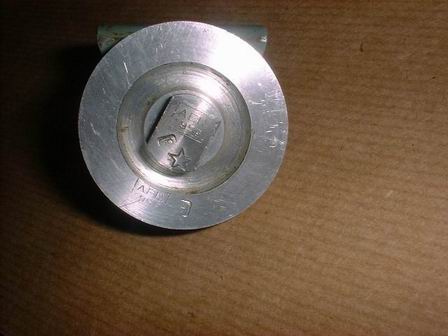

A view of many hinges and pulleys with the stamp of the factory.

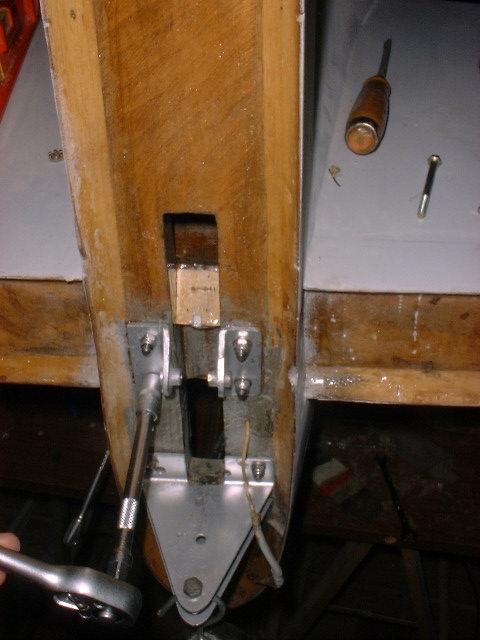

A view of the tail section.

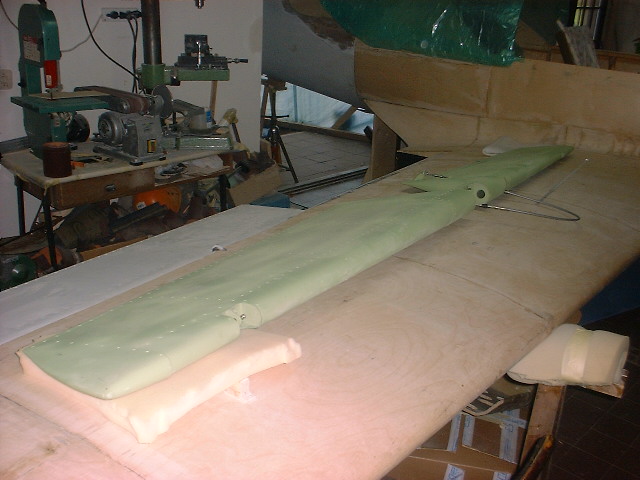

Now it's time to install the elevator.Series IV falcos had all metal control surfaces and our elevator doesn't make an exception.It's one of the last produced by laverda,and it still doesn't have flush head rivets.We inspected it completly and painted with primer.
