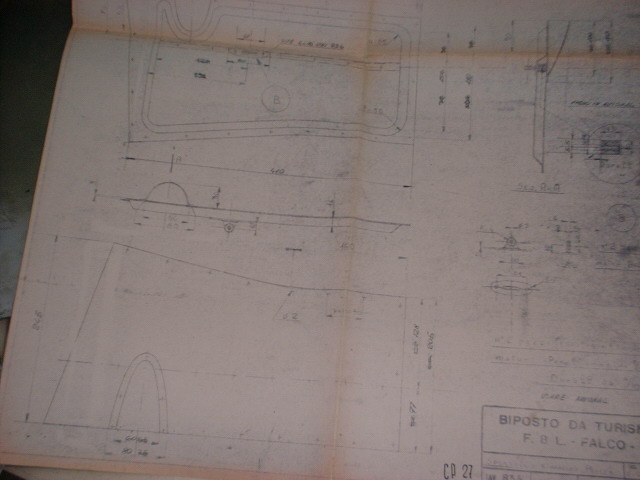

The original drawing of the main landing gear doors, signed by Ing. Frati.

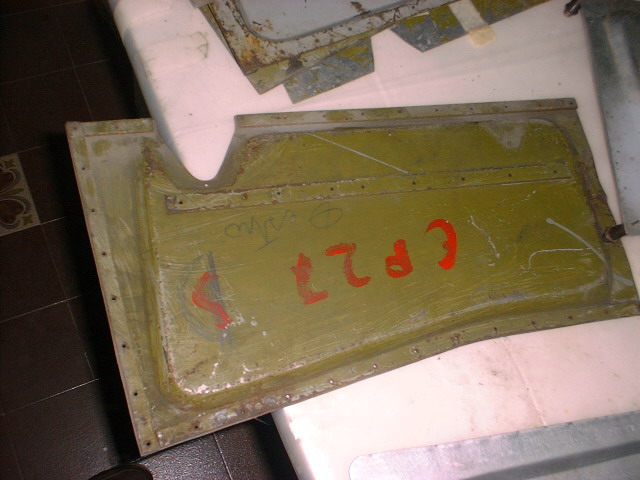

The jig of the aluminium gear goor. CP 27 means "Carrello Posteriore part n° 27" (landing gear part 27) If you look at the drawing in the previous picture you can find the same number to identify the drawing linked to this part.

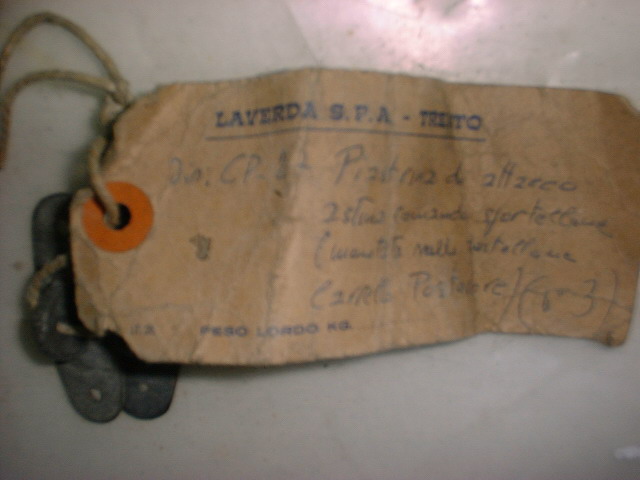

Here there are the two hinges on the gear door. They were made by Laverda and also here you can read Dis .(drawing) CP 27.

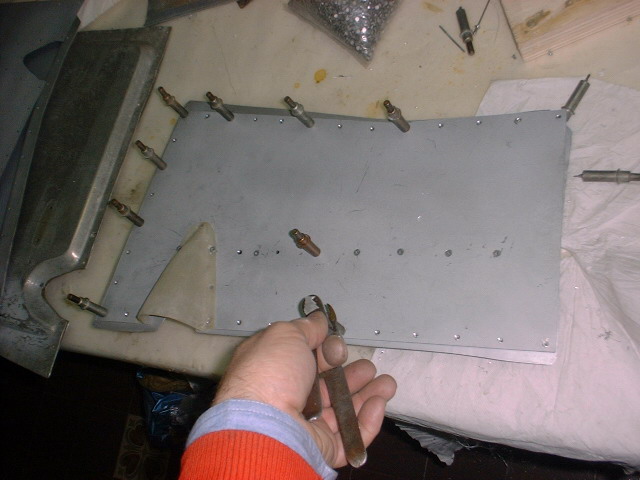

The jig proved to be very useful, and I'm using the same plies that were used to produce many production falcos.

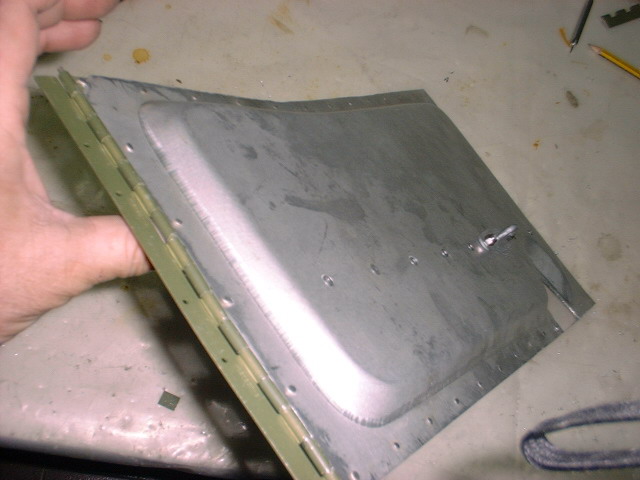

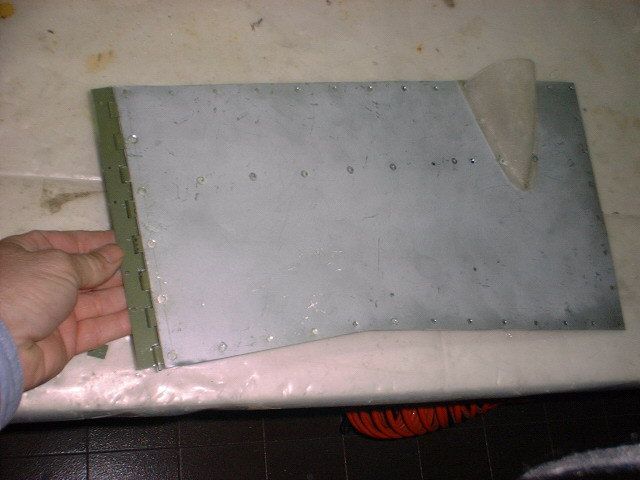

The finished doors.
