While normally the wing fillets in homebuilt falcos are made with fiberglass, we decided to make them in the same way the original falcos were built, that is with wood and plywood.

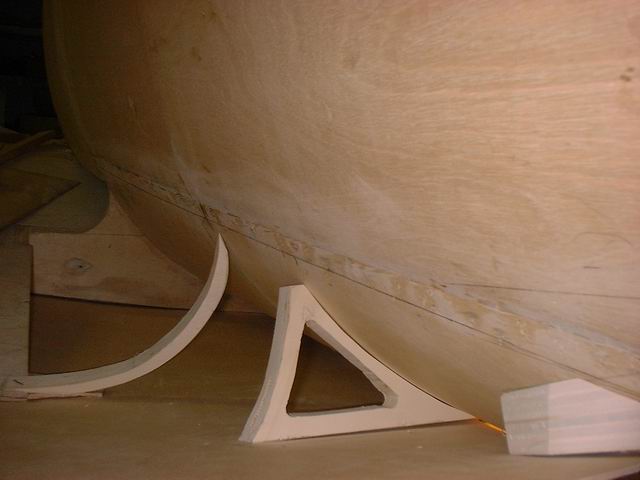

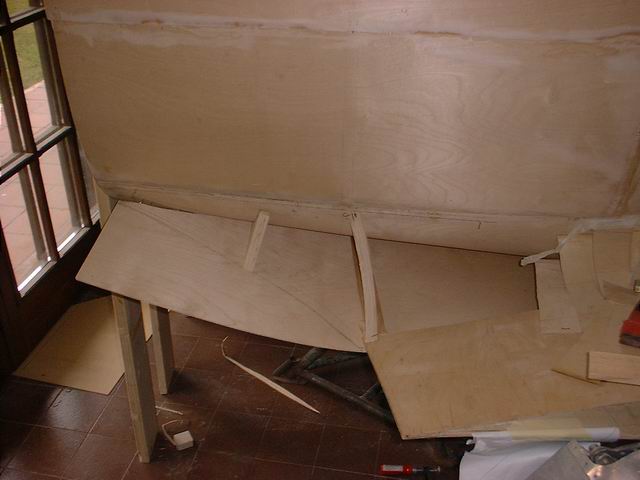

Now,these are some ribs we made to give the right shape to the plywood.

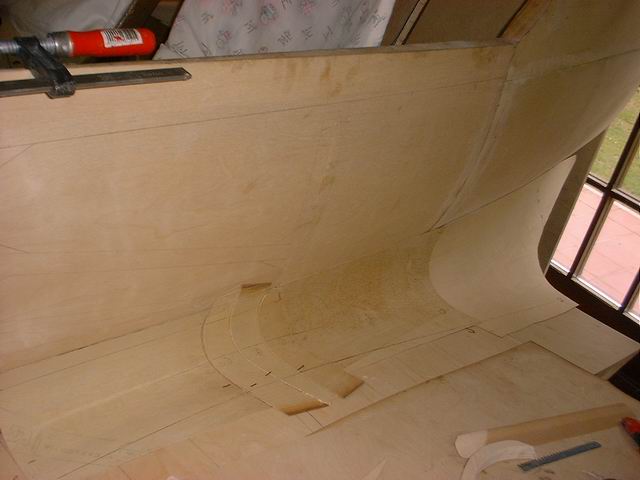

We reproduced the shape of I-ELZA's fillets using some sheets of paper that gave us the right curves at different positions.

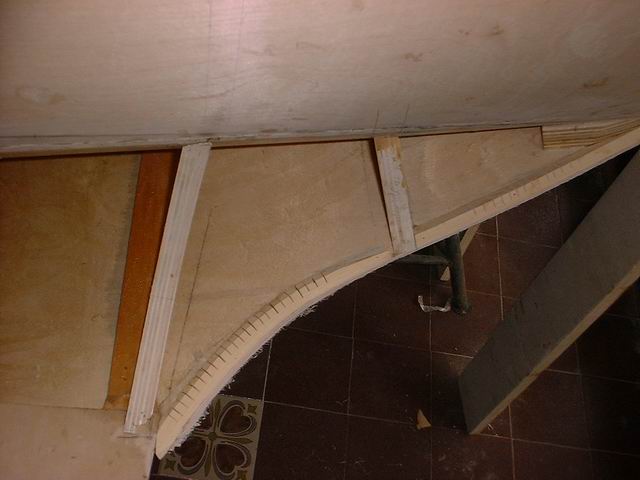

Then comes the edge.

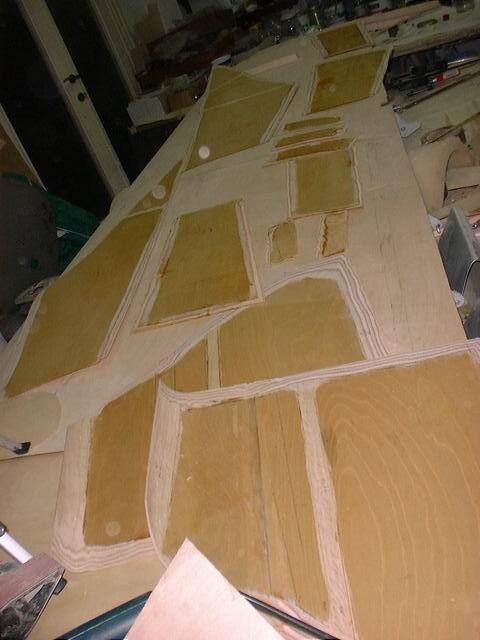

Preparing the plywood for the fillets and the lower part of the airplane.The sheets are painted with epoxy to prevent moisture, except the spaces that have to ble glued with aerolite.

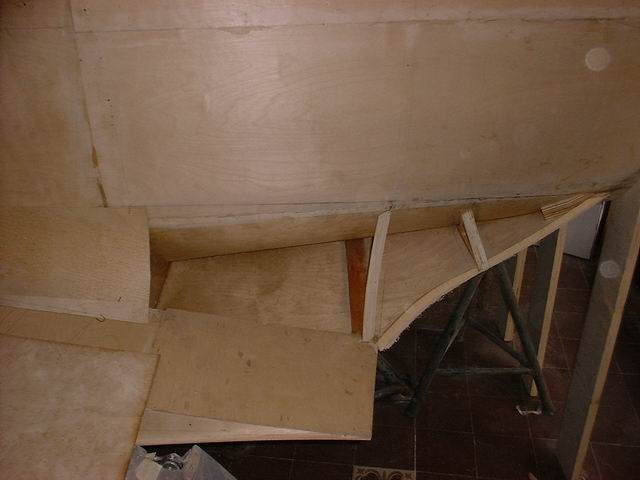

A detail of the corner.





Here's the wing fillet glued but not already sanded.
