Larger flap-aileron complex required repositioning of trailing edge rib no 2 , and wing walk widht is consistently reduced.

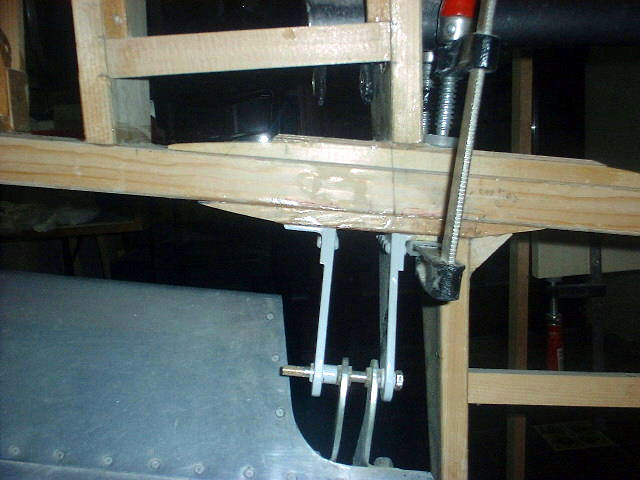

A Falco builder will note immediatly a couple of differences: reinforcement of the aft spar , different flap hinges and modified flap control tube.

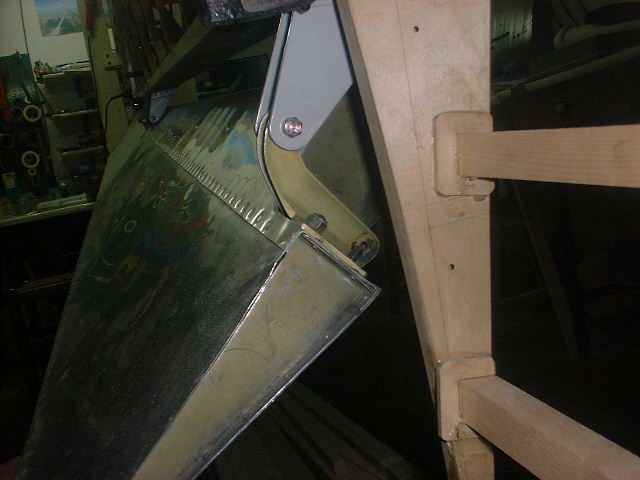

This hinge is completly different from the "usual"one. It required a new upper hinges.



This modification was suggested by Ing. Valtorta, because he found some weakness in the aft spar of a production falco.This is done in the flap tube hole area.the height of this reinforcement gets lower gradually at the ends to prevent breaks.

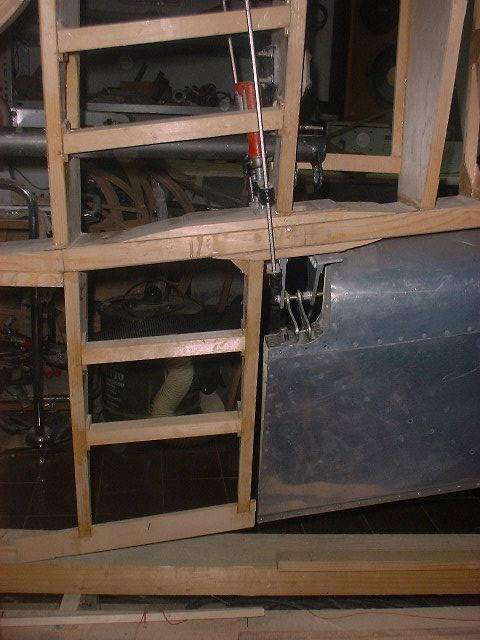

This is the result:long and wide assembly...
